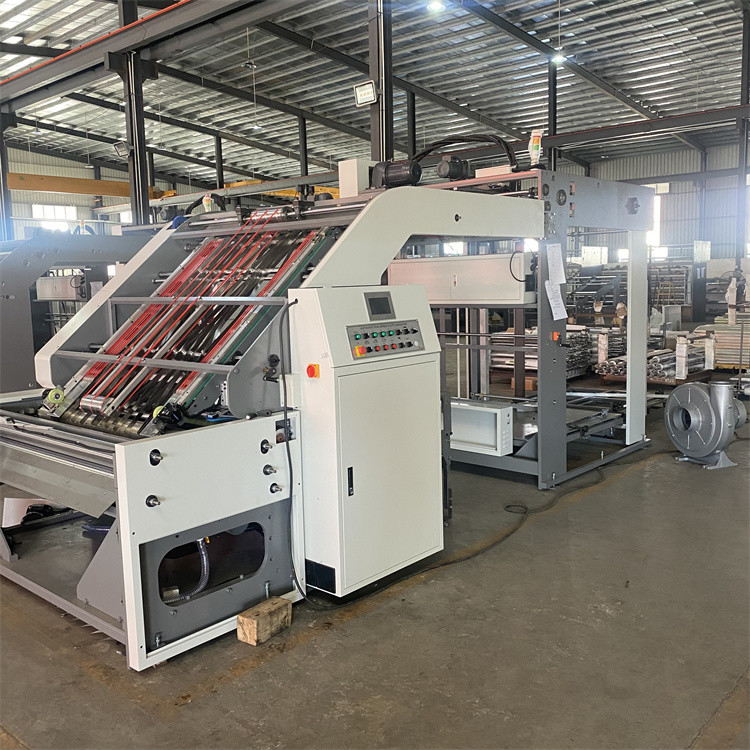

    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker

    Ask Lasest Price
    Brand Name : Hangsen
    Supply Ability : 10 Set/Sets per Month
    Price : $55,000.00 - $65,000.00/sets
    • Product Details
    • Company Profile

    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker

    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker

    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop StackerEasy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker

    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
    DX-1450
    DX-1650
    DX-1650XL
    DX-2100
    MAX
    145*145mm
    165*145mm
    165*165mm
    210*210mm
    MIN
    400*450mm
    400*450mm
    400*450mm
    550*450mm
    TOP GSM
    120-600/m²
    120-600/m²
    120-600/m²
    120-600/m²
    BOT THICK
    0.5-10MM A-N 2/3/5 corrugated board, grey paper board, cardboard
    SPEED
    150M/MIN
    ACCURACY
    ±1.5MM
    POWER
    26KW
    28KW
    28KW
    29KW
    WEIGHT
    7T
    7.5T
    7.5T
    8.5T
    Dimension
    14056*2314*2560mm
    14056*2514*2560mm
    16598*2514*2560mm
    17607*2964*2180mm

    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
    Servo shaftless back feeder, make the top sheet feeding paper overlap, fast and efficiency.
    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
    Dual servo bottom sheet feeder ensures smooth feeding of warping and multi-ply paperboards.
    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
    Multiple sensors detectrelative position of bottom paper, while servo motors ensure dependentupper paper delivery compensation to guarantee precise aligning of two sheets.
    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
    Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition, irregularities and job record. CE certified. The electrical components adopt international brands, such as Yaskawa, Schneider, Siemens and Omron, etc.
    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
    High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.
    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
    Bottom sheet suction equipped with servo motors instead of electromagnetic valve, much stable and efficient.
    Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
