    Automatic Corrugated Cardboard Flute Laminator CE Certified

    Ask Lasest Price
    Brand Name : DINGXING/DINGYI
    Supply Ability : 10 Set/Sets per Month
    Price : $55,000.00 - $65,000.00/sets
    • Product Details
    • Company Profile

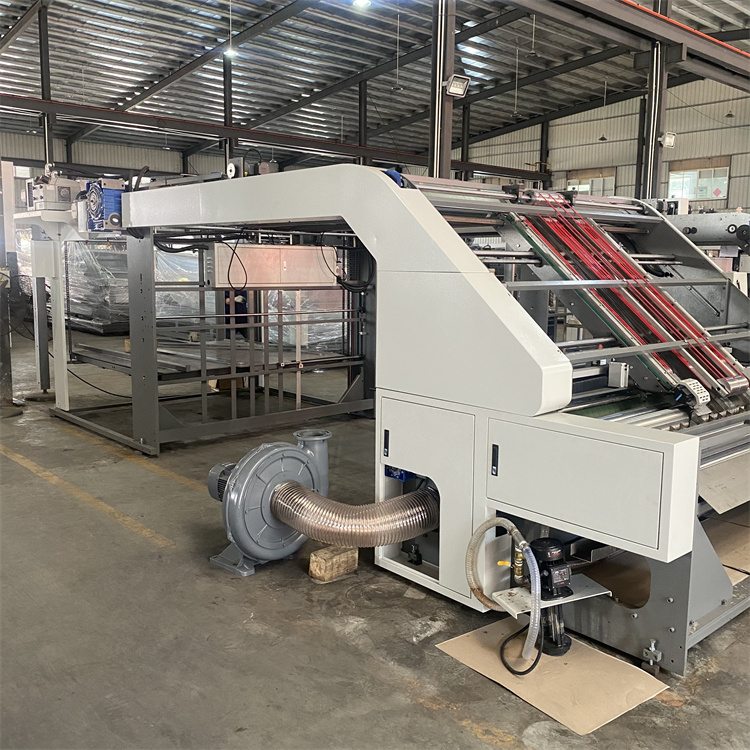

    Automatic Corrugated Cardboard Flute Laminator CE Certified

    High Speed Flute Laminator Inline with Auto Flip Flop Stacker


    Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)

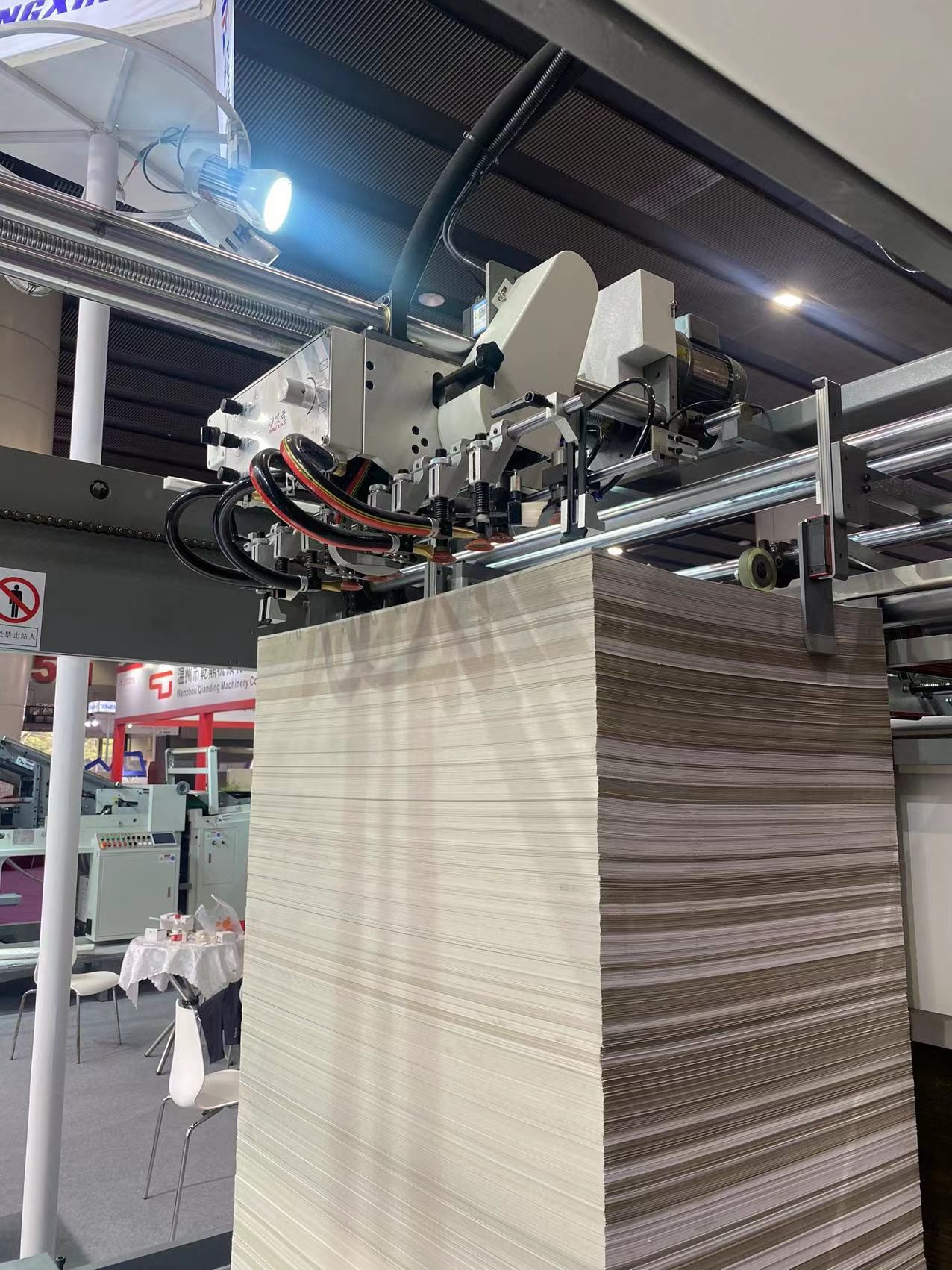

    • Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

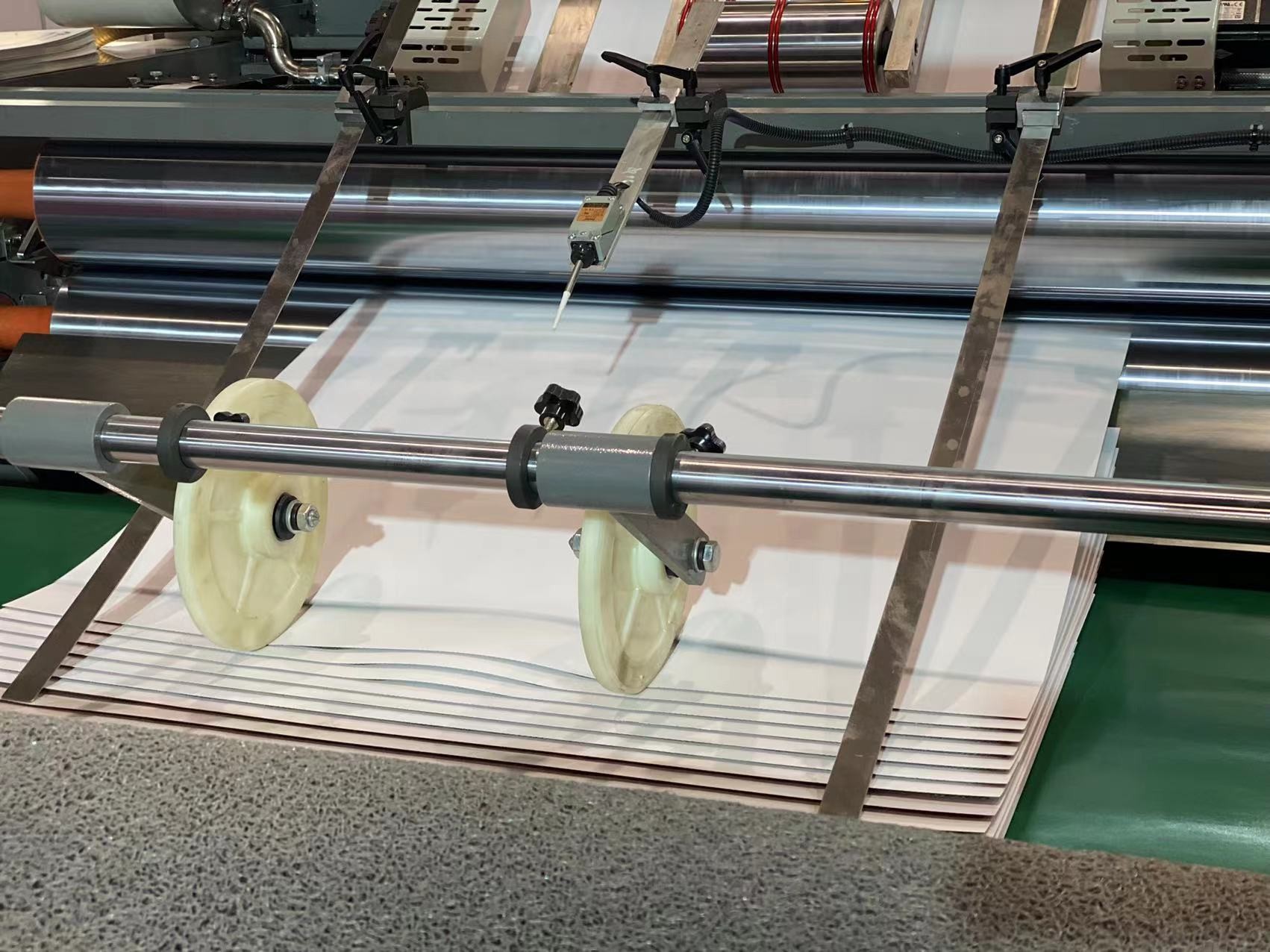

    • Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.

    • Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper

    delivery compensation to guarantee precise aligning of two sheets.

    • Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,

    irregularities and job record. CE certified.

    DX-1450

    DX-1650

    DX-1650XL

    DX-2100

    MAX

    145*145

    165*145

    165*165

    210*210

    MIN

    400*450

    400*450

    400*450

    550*450

    TOP GSM

    120-600

    120-600

    120-600

    120-600

    BOT THICK

    0.5-10MM A-N 2/3/5 corrugated board, grey paper board, cardboard

    SPEED

    150M/MIN

    ACCURACY

    ±1.5MM

    POWER

    26KW

    28KW

    28KW

    29KW

    WEIGHT

    7

    7.5

    7.5

    8.5

    Dimension

    14056*2314*2560

    14056*2514*2560

    16598*2514*2560

    17607*2964*2180
