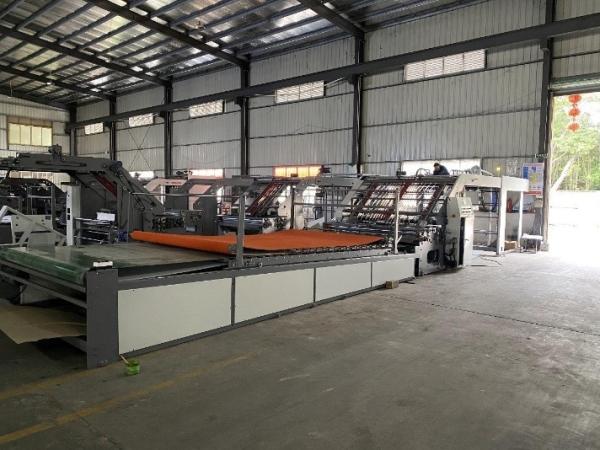

    120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE

    Ask Lasest Price
    Brand Name : DINGXING/DINGYI
    Model Number : DX-1650
    Certification : ISO/CE
    Price : USD 40000-70000/SET
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 20 SET/MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE

    DX-1650 HIGH LAMINATION ACCURACY FLUTE LAMINATOR


    Leading-edge L .itho Feeder ensures stable running at high speed and no extra adjustment for different job. . Servo shaftless back feeder, make the top sheet feeding paper overlap. fast and efficiency. " Dual servo bottom sheet feeder ensures smooth feeding of warping and multi ply paperboards. Computerized high-speed lamination at max. speed of 12,000 sheets per hour(Paper length:600mm)


    Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional. . Gluing System:High- precision gluing rollers, glue side stopper. auto glue level controller. no overflow at high speed and glue recirculation system. . Compensation Aligning System: multiple sensors detect relative position of bottom paper .while servo motors ensure dependent upper paperdelivery compensation to guarantee precise aligning of two sheets. . Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,irregularities and job record. CE certified.


    Model/ModeloDX-1450

    DX-1650



    DX-1650XL


    DX-2050DX-2100

    Max. SheetSize(WXL)

    Tamaño máximo (WXL)


    1450mmx1450mm

    (57’x57’)


    1650mmx1450mm

    (65’x57’)


    1650mmx1650mm

    (65’x65’)

    2050mmx1650mm

    (817’x65’)

    2100mmx2100mm

    (83x83’)

    Min. Sheet Size(WXL)

    Tamaño mínimo de tabla

    400mmx400mm

    (16’x16’)

    400mmx400mm

    (16’x16’)

    400mmx400mm

    (16’x16’)

    550mmx450mm

    (21’x18’)

    550mm*450mm

    (22x18’)

    Thickness of Upper Paper

    Grosor del papel


    120~600gsm


    Thickness of Bottom Paper

    Grosor de fondo

    0.5-10mm

    A-N Flute single layer/3 layers/5 layers /7 layers Corrugate board, Grey Board and Board

    Flauta A-N de una capa / 3 capas / 5 capas / 7 capas Tablero corrugado, tablero gris y tablero


    Max. Speed

    Velocidad máxima

    150m/min (Subject to board quality and specification)

    Laminating Precision

    Precisión de laminado

    ±1.5mm±1.5mm±1.5mm±1.5mm±2mm

    Power

    Poder

    200V/-380V3-25HP200V/-380V3-25HP200V/-380V3-25HP200V/-380V3-25HP200V/-380V3-25HP
