DW-1650 5Ply Automatic Flute Laminator

Specifications:

Note: Specifications are subject to change without notice.

Sources of Main Parts

Litho Paper Feeder

• Equipped with 4 paper raising caps and 4 feeding caps to ensure smooth feeding.
• Paper pressing base with air blower and two sides sub-blower for wider paper.

Substrate Two Paper Feeders

The corrugated paper is attached and goes through the Spring plates by suction belt and make the corrugated board delivery smoothly. Newly designed assistance belt helps to do the perfect suction belt feeding jobs, especially for 3/5 /7 ply.

Servo motor Alignment and Timing System

• Servo motor alignment for top paper and bottom 4ply corrugated boards. Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors (Japanese Yaskawa brand) adjust the top sheets synchronously to make accurate register during lamination.
• Synchronous Register Belts. Bottom two corrugated boards are registered and aligned y synchronous pushing claw that makes accurate registration. There are buffer designed before pushing claw striking the paper that prevent paper edge from damage. The micro adjuster and bearing holding system allows accurate lamination of two substrate papers conveyed.

Gluing System

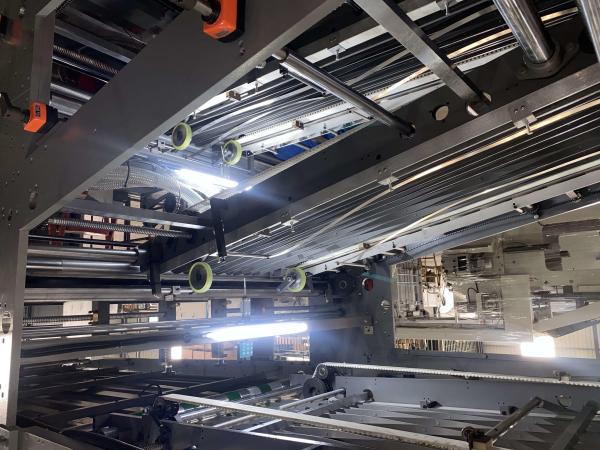

Pressing Conveyor

Integrated with upper and lower pressing conveyor, all boards are pressed and dried naturally until they are laminated tightly without air bubbles.

Side Frames

Newly designed machine with strengthened frames ensures stability even at highest speed and long machine life. Independent roller wheels are easy to dismantle to ensure quick replacement.

Solid and durable precision casting hand wheels.

Electrical Control System

1. Operator Panel shows all operation buttons and functions. Auxiliary Operator Panels are located in the Feeder and Pressing Conveyor. The Counter calculates laminating sheets through photocell control and Fixed Speed Device ensures fixed running speed.

2. Electrical driven systems are Schneider and Fotek & Anly from Taiwan.
