DW-1650 Two Flute Combation Laminator

Specifications:

Note: Specifications are subject to change without notice.

Litho Paper Feeder

• Equipped with 4 paper raising caps and 4 feeding caps to ensure smooth feeding.
• Paper pressing base with air blower and two sides sub-blower for wider paper.

Substrate Two Paper Feeders

The corrugated paper is attached and goes through the Spring plates by suction belt and make the corrugated board delivery smoothly. Newly designed assistance belt helps to do the perfect suction belt feeding jobs, especially for 3/5 /7 ply.

Servo motor Alignment and Timing System

• Servo motor alignment for top paper and bottom 4ply corrugated boards. Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors (Japanese Yaskawa brand) adjust the top sheets synchronously to make accurate register during lamination.
• Synchronous Register Belts. Bottom two corrugated boards are registered and aligned y synchronous pushing claw that makes accurate registration. There are buffer designed before pushing claw striking the paper that prevent paper edge from damage. The micro adjuster and bearing holding system allows accurate lamination of two substrate papers conveyed.

Gluing System

Pressing Conveyor

Integrated with upper and lower pressing conveyor, all boards are pressed and dried naturally until they are laminated tightly without air bubbles.

Side Frames

Newly designed machine with strengthened frames ensures stability even at highest speed and long machine life. Independent roller wheels are easy to dismantle to ensure quick replacement.

Solid and durable precision casting hand wheels.

Electrical Control System

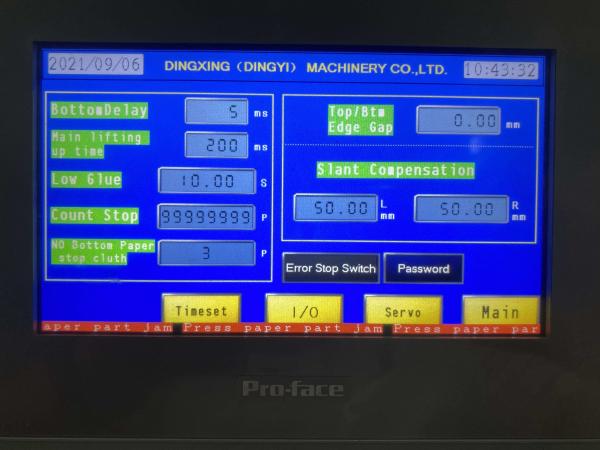

1. Operator Panel shows all operation buttons and functions. Auxiliary Operator Panels are located in the Feeder and Pressing Conveyor. The Counter calculates laminating sheets through photocell control and Fixed Speed Device ensures fixed running speed.

2. Electrical driven systems are Schneider and Fotek & Anly from Taiwan.

Sources of Main Parts

Dingxing Machinery has two production bases, Donguan Dingyi machinery Co., Ltd. And Dongtai Dingxing machinery technology Co., Ltd.

Dingxing Machinery Co, Ltd. is a post-press machinery enterprise integrating professional R&D, production and sales. Dongguan Dingyi was established in China's machinery town-Dalingshan Town, Dongguan City, in September, 2008. After nearly 10 years of concentrated development, the company has won unanimous praise from the industry and customers in the printing and laminator industries, and has become a benchmark enterprise in China's laminator industry. Under the continuous research of the company's technical team, a number of national invention and utility model patents have been obtained. In order to serve domestic and foreign customers more efficiently and quickly, the company established Dongtai Dingxing Machinery Technology Co., Ltd. in Jiangsu in April 2018, and officially put it into production in October 2019. Since then, two production bases, "Dingyi" in the south and "Dingxing" in the north, have been formed, with a total construction area of nearly 28,000 square meters, which will better serve domestic and foreign customers.

The company adheres to the business tenet of "Quality is life, customer is God", and strives to "Become An Industry Benchmark, Build An International Brand, And Serve Global Users" brand philosophy, and adhere to the "innovation, truth-seeking, hard work, and pragmatic" policy. Implement the service concept of "customer satisfaction, mutual benefit and win-win".

Main products: automatic intelligent high-speed laminator machine, automatic medium-speed laminator machine, automatic carboard laminator machine, automatic flip flop stacker machine, automatic 5 ply laminator machine, and automatic pile turner machine.
