    PLC Control Cardboard High Speed Flute Laminator 150m/Min

    Ask Lasest Price
    Brand Name : DINGXING/DINGYI
    Model Number : DX-1650
    Certification : ISO/CE
    Price : USD 20000-50000/SET
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 15 SET/MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    PLC Control Cardboard High Speed Flute Laminator 150m/Min

    DX-1650 Sheet to Cardboard Flute Laminator


    DX-1450DX-1650DX-1650XL
    Max. Size:1450mm*1450mm1650mm*1450mm1650mm*1650mm
    Min. Size:400mm*450mm400mm*450mm400mm*450mm
    Top Sheet GSM:120gsm—600g/㎡120gsm—600g/㎡120gsm—600g/㎡
    Bottom Sheet Thickness:0.5-10mm0.5-10mm0.5-10mm
    Max. Speed:30~150m/min30~150m/min30~150m/min
    Lamination Accuracy:±1.5mm±1.5mm±1.5mm
    Total Weight:7000kgs7500kgs7500kgs
    Machine Size:14056mm*2314mm*2560mm14056mm*2514mm*2560mm16525mm*2514mm*2560mm
    Machine Power:AC380/50HZ/26KWAC380/50HZ/28KWAC380/50HZ/28KW
    Suitable PaperSingle face(flute A-G), Multi-ply(3-7) corrugated cardboard, grey paperboard, paper board over 300 GSM.

    PLC Control Cardboard High Speed Flute Laminator 150m/Min

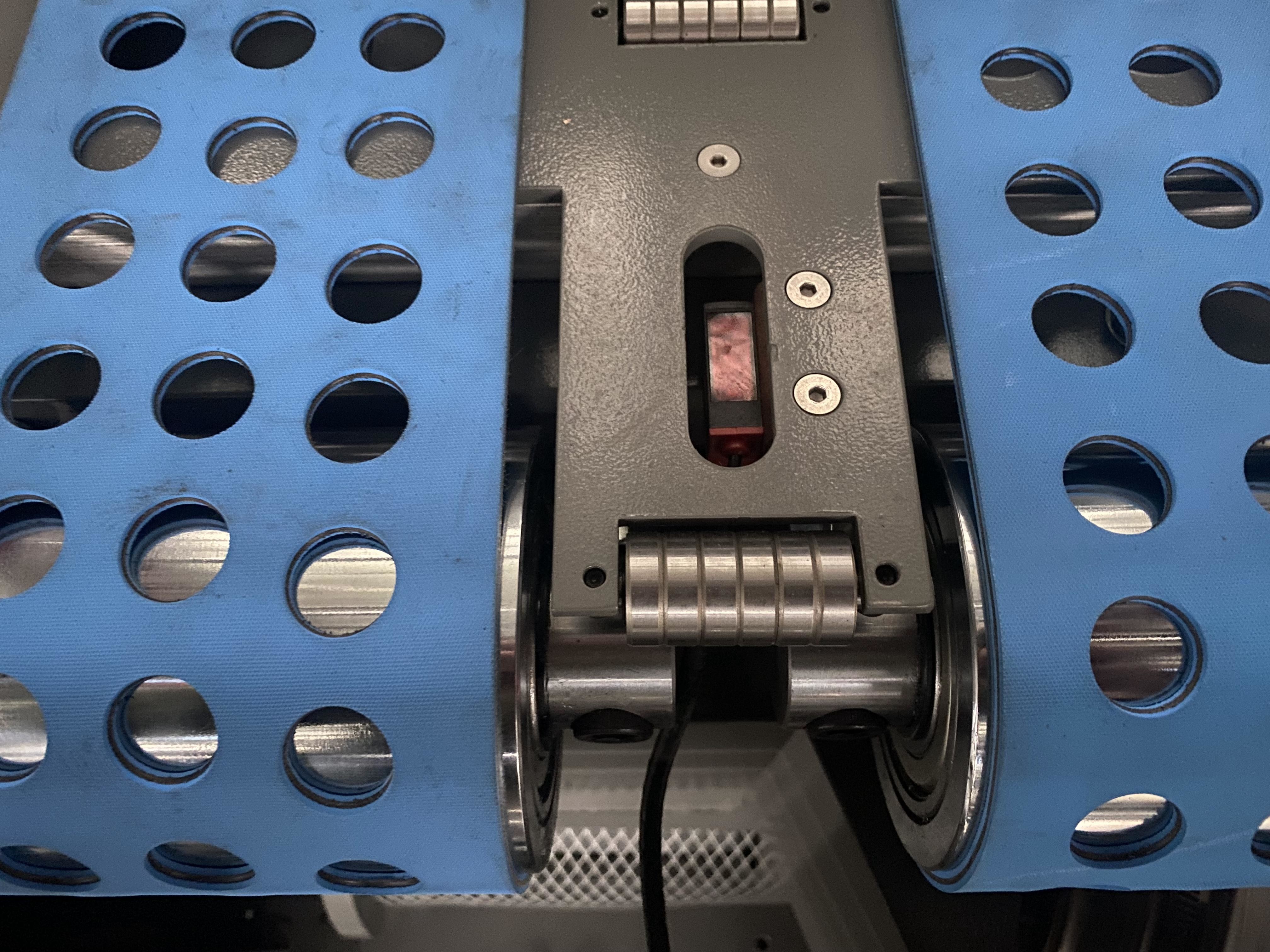

    • Servo shaftless back feeder, make the top sheet feeding paper overlap, fast and efficiency.


    PLC Control Cardboard High Speed Flute Laminator 150m/Min


    • Dual servo bottom sheet feeder ensures smooth feeding of warping and multi-ply paperboards.


    PLC Control Cardboard High Speed Flute Laminator 150m/Min


    • Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)

    • Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

    PLC Control Cardboard High Speed Flute Laminator 150m/Min

    • Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.


    PLC Control Cardboard High Speed Flute Laminator 150m/Min


    • Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper delivery compensation to guarantee precise aligning of two sheets.


    PLC Control Cardboard High Speed Flute Laminator 150m/MinPLC Control Cardboard High Speed Flute Laminator 150m/Min


    • Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,irregularities and job record. CE certified.

    PLC Control Cardboard High Speed Flute Laminator 150m/Min
