Product: DX-2100 High-speed Litho Laminator

(Synchronous Servo-driven)

DX-1650XL Front Feeder Flute Laminator

Technical Data:

**Specifications are subject to change without notice

1. Laminating tolerance. If paper quality and cut is good and precise enough, and at the speed of 9000 sheets/hour, the laminator can reach as well as 1.0mm tolerance or less.
2. The knurled stainless-steel gluing roller can guarantee the glue consumption normally ranging from 25-30gsm subject to operator’s skills and types of corrugated paper.

• Front-top leading-edge suction feeder ensures stable running at high speed.
• No extra adjustment for different sheets format, easy to operate.

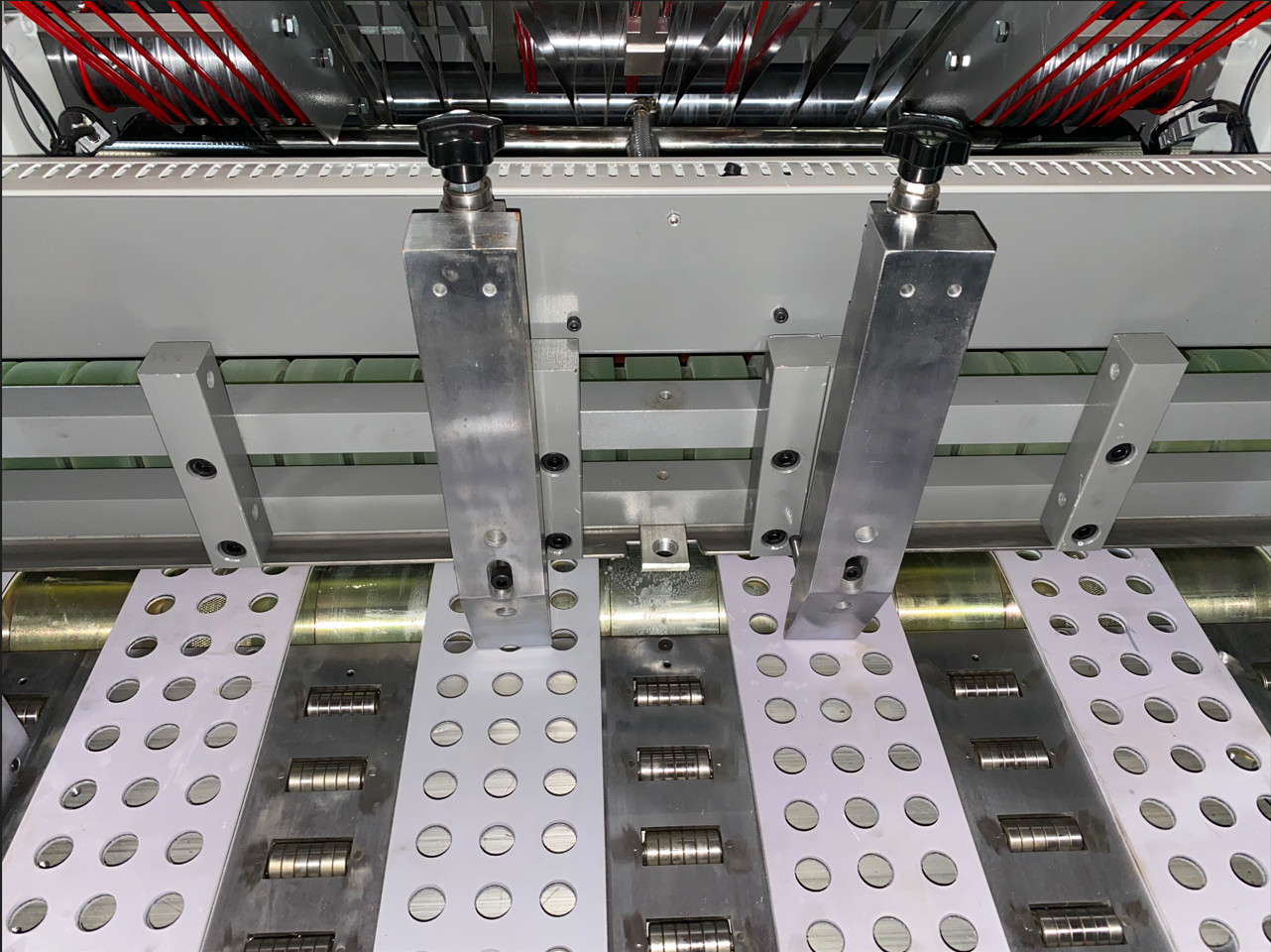

• E-type paper holding plate for quick paper changeover.
• Pre-loading device by rail equipped as standard.
• Easy for pulling thin paper to lowest 100 gsm paper.

• Equipped with two Yaskawa servo motors, one is for accurate paper feeding timing, another is for controlling intermittent air suction for better bigger size paper feeding.
• Big air blower and separate belt holders ensure smooth feeding of 2ply,3ply,4ply, 5ply and cardboard, no vibration of belt holder.

Servo motor assembly to ensure accurate and strengthened suction

• High precise coating stainless steel roller mechanism assures even glue applied.
• Special mechanism ensures paper stripping off the gluing roller, easy to clean, dismantle and adjust
• Three sensors to control the glue volume level automatically.
• Side Glue stopper ensures no overflow at high speed and glue re-circulation at high speed.

• Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors (Japanese Yaskawa brand) adjust the top sheets synchronously to make accurate register during lamination.

Multi Power transmission evenly distributed by gears and belts combination, maintenance free, low noise, high efficiency

• Main gears for gluing rollers are made from Taiwan company.

• The laminated sheets collected by press conveyor as standard for perfect bonding.
• The conveyor speed is adjustable by one motor as per the machine speed.

Touch Screen

• Man-machine interface (Proface) with PLC touch-screen control, warning light indicator, automatic monitoring of production condition, irregularities and job record.

Control Cabinet

Dingxing Machinery has two production bases, Donguan Dingyi machinery Co., Ltd. And Dongtai Dingxing machinery technology Co., Ltd.

Dingxing Machinery Co, Ltd. is a post-press machinery enterprise integrating professional R&D, production and sales. Dongguan Dingyi was established in China's machinery town-Dalingshan Town, Dongguan City, in September, 2008. After nearly 10 years of concentrated development, the company has won unanimous praise from the industry and customers in the printing and laminator industries, and has become a benchmark enterprise in China's laminator industry. Under the continuous research of the company's technical team, a number of national invention and utility model patents have been obtained. In order to serve domestic and foreign customers more efficiently and quickly, the company established Dongtai Dingxing Machinery Technology Co., Ltd. in Jiangsu in April 2018, and officially put it into production in October 2019. Since then, two production bases, "Dingyi" in the south and "Dingxing" in the north, have been formed, with a total construction area of nearly 28,000 square meters, which will better serve domestic and foreign customers.

The company adheres to the business tenet of "Quality is life, customer is God", and strives to "Become An Industry Benchmark, Build An International Brand, And Serve Global Users" brand philosophy, and adhere to the "innovation, truth-seeking, hard work, and pragmatic" policy. Implement the service concept of "customer satisfaction, mutual benefit and win-win".

Main products: automatic intelligent high-speed laminator machine, automatic medium-speed laminator machine, automatic carboard laminator machine, automatic flip flop stacker machine, automatic 5 ply laminator machine, and automatic pile turner machine.
