    Back Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC Control

    Ask Lasest Price
    Brand Name : DINGXING/DINGYI
    Model Number : DX-1650
    Certification : ISO/CE
    Price : USD 50000-70000/SET
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 15SET/MONTH
    Delivery Time : 30DAYS
    • Product Details
    • Company Profile

    Back Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC Control

    DX-1650 Back Feeder Flute Laminator

    Back Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC Control


    Back Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC Control


    • Servo shaftless back feeder, make the top sheet feeding paper overlap, fast and efficiency.


    Back Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC Control


    • Dual servo bottom sheet feeder ensures smooth feeding of warping and multi-ply paperboards.


    Back Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC Control


    • Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)

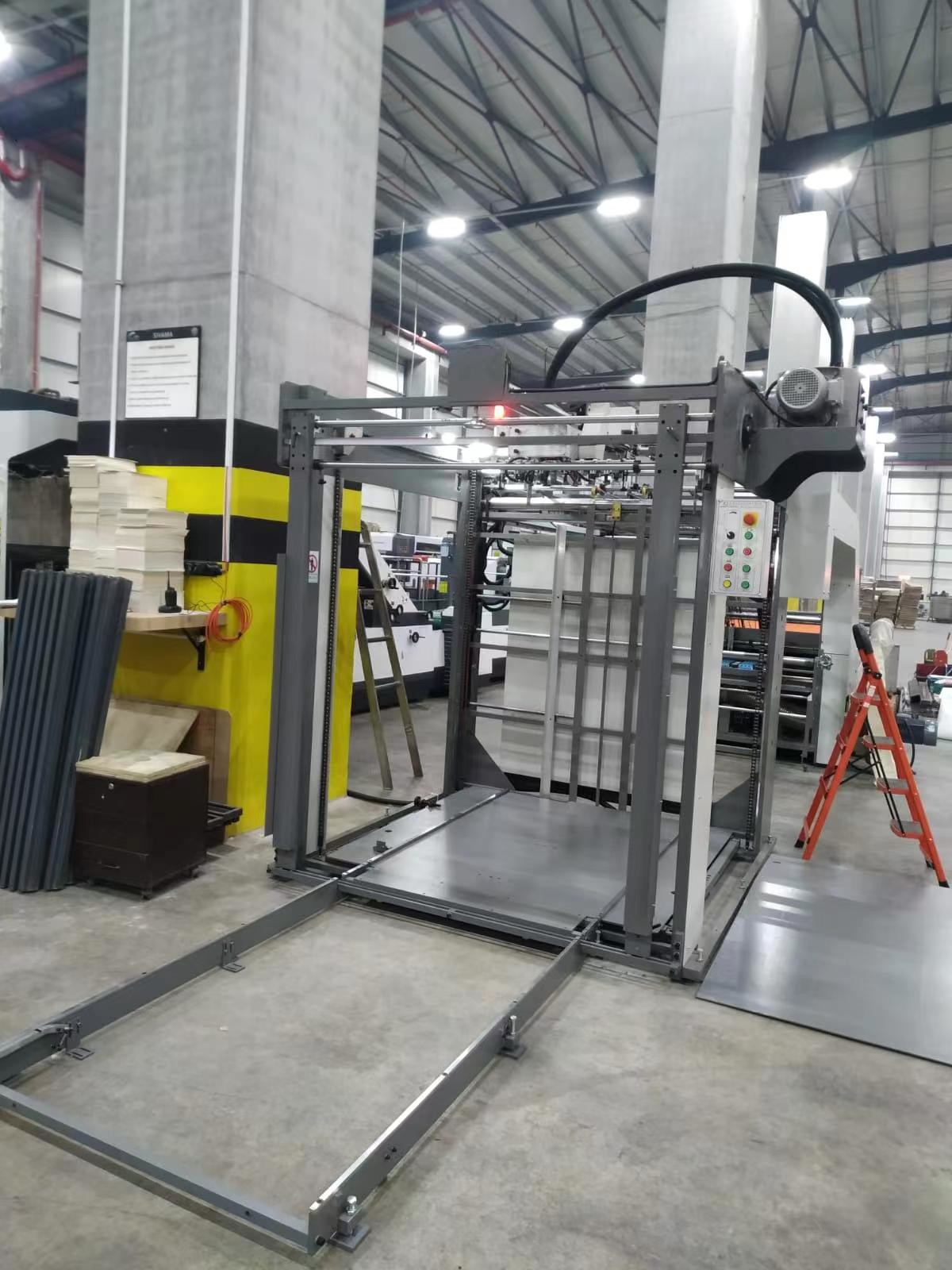

    • Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

    Back Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC Control

    • Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.


    Back Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC Control


    • Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper delivery compensation to guarantee precise aligning of two sheets.


    Back Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC ControlBack Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC Control


    • Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,irregularities and job record. CE certified.


    DX-1450DX-1650DX-1650XL
    Max. Size:1450mm*1450mm1650mm*1450mm1650mm*1650mm
    Min. Size:400mm*450mm400mm*450mm400mm*450mm
    Top Sheet GSM:120gsm—600g/㎡120gsm—600g/㎡120gsm—600g/㎡
    Bottom Sheet Thickness:0.5-10mm0.5-10mm0.5-10mm
    Max. Speed:30~150m/min30~150m/min30~150m/min
    Lamination Accuracy:±1.5mm±1.5mm±1.5mm
    Total Weight:7000kgs7500kgs7500kgs
    Machine Size:14056mm*2314mm*2560mm14056mm*2514mm*2560mm16525mm*2514mm*2560mm
    Machine Power:AC380/50HZ/26KWAC380/50HZ/28KWAC380/50HZ/28KW
    Suitable PaperSingle face(flute A-G), Multi-ply(3-7) corrugated cardboard, grey paperboard, paper board over 300 GSM.
