FZ-2100L Rotary Stacker

Automatic Flip Flop Stacker

In order to achieve best efficiency for High Speed Laminator, this flip flop stacker is to track the speed of the laminator and collect laminated sheets in piles neatly and automatically, and be integrated into one production line with flute laminator to increase efficiency.

Description:

1, Integrated with flute laminator to ensure automatic collection, stacking of laminated sheets.

2,Fully intermittent turning, flip-flop stacking sheets into an organised and smooth piling.

3, Stacked by one pile of up and one pile of down or two piles up and two piles down subject to paper thickness and job request.

4.Automatic paper pile height setting.

5.Touch screen operation, user-friendly and easy to run.

6 Time-saving, labor-saving and production efficient.

7. Max speed is 10000 sheets per hour.

Specifications:

Specifications are subject to change without notice

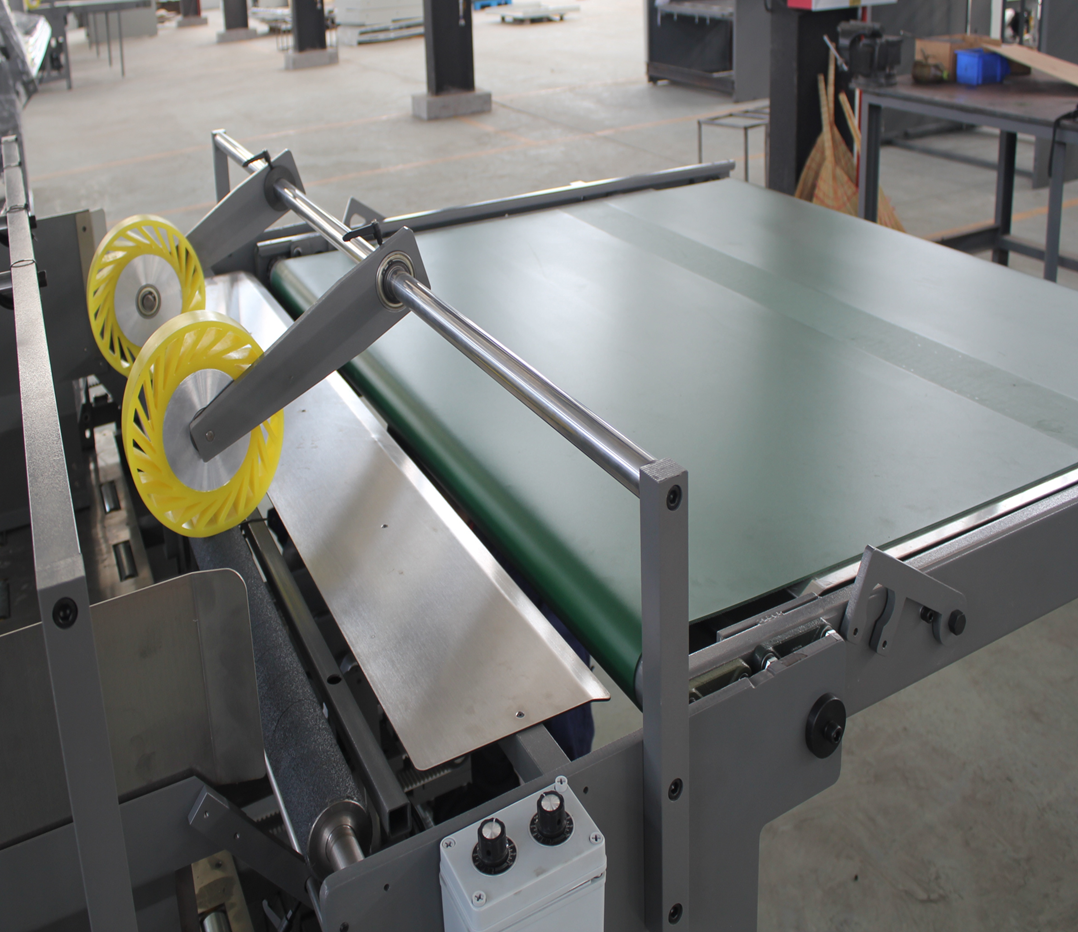

Laminated Sheets Separation System

Main purpose is to separate the heavily overlapped sheets from pressing conveyor of laminator and deliver laminated sheets to paper collection system

Pre-stack System

Pre-stack system is to collect with laminated sheets separation system, and stack one pile of sheets neatly and deliver to flip flop system. Stack height is adjustable by entering number of sheets into HMI and paper push is driven by motor

Touch Screen (HMI)

To enter paper size, paper quantity and start the machine running.

Paper Flip Flop System

Paper Loosening System

Paper Lifting System

Paper lifting system is driven by Innovance servo motor

Paper Collecting System

Paper Delivery System

Control Cabinet

Dingxing Machinery has two production bases, Donguan Dingyi machinery Co., Ltd. And Dongtai Dingxing machinery technology Co., Ltd.

Dingxing Machinery Co, Ltd. is a post-press machinery enterprise integrating professional R&D, production and sales. Dongguan Dingyi was established in China's machinery town-Dalingshan Town, Dongguan City, in September, 2008. After nearly 10 years of concentrated development, the company has won unanimous praise from the industry and customers in the printing and laminator industries, and has become a benchmark enterprise in China's laminator industry. Under the continuous research of the company's technical team, a number of national invention and utility model patents have been obtained. In order to serve domestic and foreign customers more efficiently and quickly, the company established Dongtai Dingxing Machinery Technology Co., Ltd. in Jiangsu in April 2018, and officially put it into production in October 2019. Since then, two production bases, "Dingyi" in the south and "Dingxing" in the north, have been formed, with a total construction area of nearly 28,000 square meters, which will better serve domestic and foreign customers.

The company adheres to the business tenet of "Quality is life, customer is God", and strives to "Become An Industry Benchmark, Build An International Brand, And Serve Global Users" brand philosophy, and adhere to the "innovation, truth-seeking, hard work, and pragmatic" policy. Implement the service concept of "customer satisfaction, mutual benefit and win-win".

Main products: automatic intelligent high-speed laminator machine, automatic medium-speed laminator machine, automatic carboard laminator machine, automatic flip flop stacker machine, automatic 5 ply laminator machine, and automatic pile turner machine.
