MTM-130E4 Automatic Hot Knife Film Laminator

MTM-E Automatic Hot Knife Film Laminator

Automatic Hot Knife Film Laminator

Hot knife cutting blade is suitable for all films, especially PET film,metalized films(metpet) etc..

General features:

●High efficient: Power consumption of hot knife is as low as 0.4kW.

●No tail film: knife blade temperatures rose to 400 °C within 3 seconds to ensure net and quick cutting.

●High Speed Cut: 80 meters per minute.

●High cut accuracy: Double laser self-aligning device ensures perfect cutting effect.

●High precision ceramic anilox coating roller as standard to ensure super even gluing, no glue stripes, longer roller life, anti-corrosion, glue saving(5g/sqm).

●Non-stop paper feeder system enables continuous feeding without machine stop to minimize waste film.

●Electric thermal powder-removal system ensures clean paper surface to enhance lamination quality.

●Electric glue drying system combined with heat recirculation system to guarantee quick heating to dry the glue and power saving.(30kW consumption in production)

Specification Sheet

Standard Function Sections:

1. Automatic feeder

-Servo control automatic high speed feeder.

-Non-stop feeding device.

B. Side lay register

-Mechanical side lay register

-High speed paper registration.

C. Powder Removal System

-Electrostatic paper powder collector as standard

- to increase paper brightness and reduce the amount of glue.

D. Laminating Section

- Electromagnetic heating system , quick heating , energy saving and environmental protection.

E. Coating System:(with Electromagnetic energy-saving system)

- Precision ceramic roller coating , glue saving.

F. Drying system:(with Electromagnetic energy-saving system)

- Hot air circulation system , high speed drying , power saving.

G. Automatic cutting

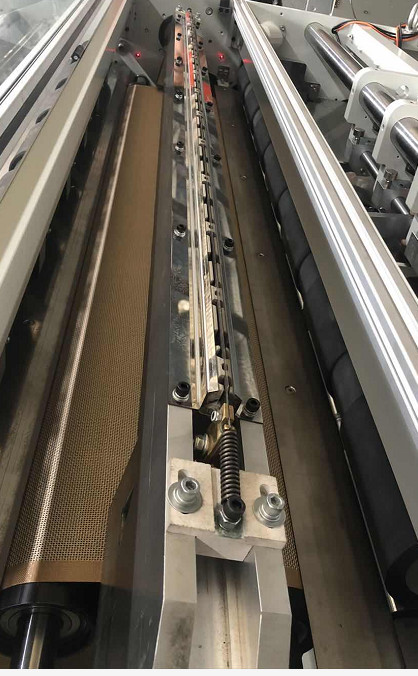

-STEINEMANN hot knife cutting system suitable for PET/OPP/PVC/Aluminum foil film cutting

-Servo automatic tracking control

-Servo control tension

-Laser positioning, accurate and precise

8. Automatic Non-stop Stacker

-Three sides paper aligning , automatic speed reduction , double sheet removal device.

Dingxing Machinery has two production bases, Donguan Dingyi machinery Co., Ltd. And Dongtai Dingxing machinery technology Co., Ltd.

Dingxing Machinery Co, Ltd. is a post-press machinery enterprise integrating professional R&D, production and sales. Dongguan Dingyi was established in China's machinery town-Dalingshan Town, Dongguan City, in September, 2008. After nearly 10 years of concentrated development, the company has won unanimous praise from the industry and customers in the printing and laminator industries, and has become a benchmark enterprise in China's laminator industry. Under the continuous research of the company's technical team, a number of national invention and utility model patents have been obtained. In order to serve domestic and foreign customers more efficiently and quickly, the company established Dongtai Dingxing Machinery Technology Co., Ltd. in Jiangsu in April 2018, and officially put it into production in October 2019. Since then, two production bases, "Dingyi" in the south and "Dingxing" in the north, have been formed, with a total construction area of nearly 28,000 square meters, which will better serve domestic and foreign customers.

The company adheres to the business tenet of "Quality is life, customer is God", and strives to "Become An Industry Benchmark, Build An International Brand, And Serve Global Users" brand philosophy, and adhere to the "innovation, truth-seeking, hard work, and pragmatic" policy. Implement the service concept of "customer satisfaction, mutual benefit and win-win".

Main products: automatic intelligent high-speed laminator machine, automatic medium-speed laminator machine, automatic carboard laminator machine, automatic flip flop stacker machine, automatic 5 ply laminator machine, and automatic pile turner machine.
